Product Description:

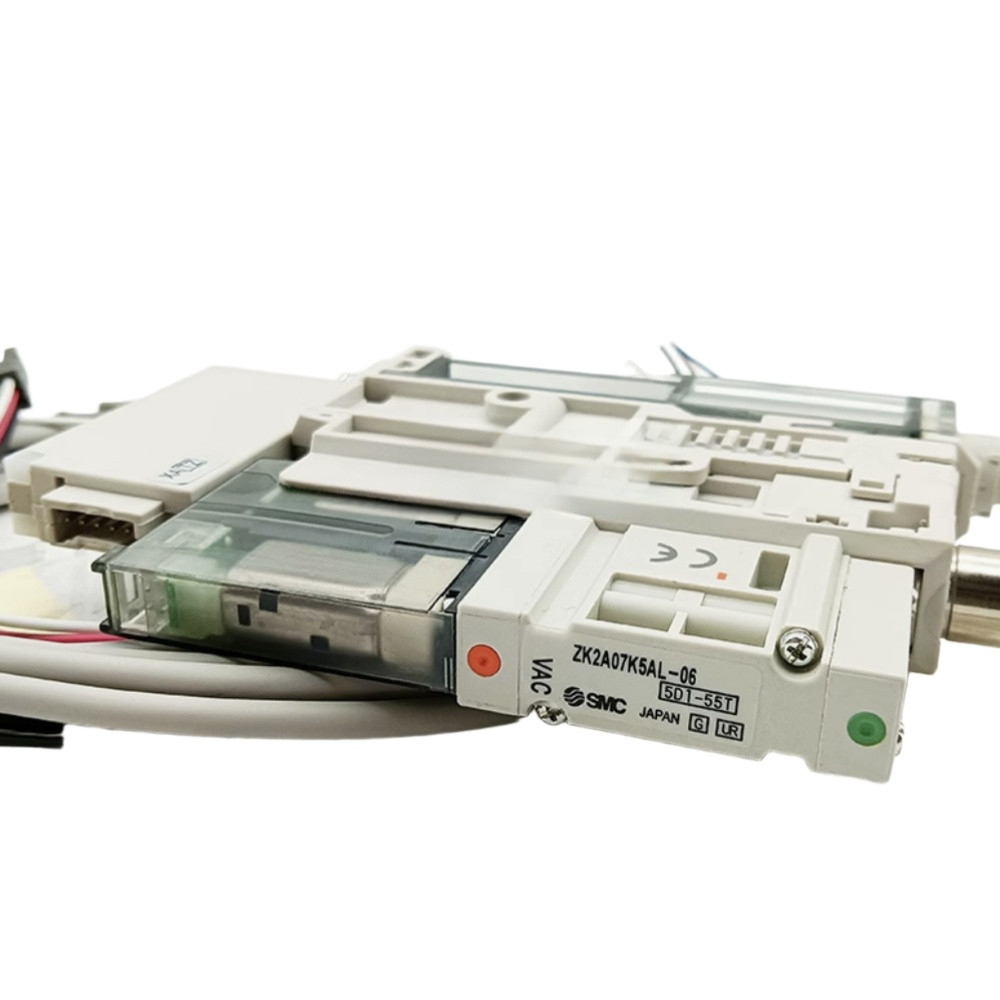

The ZK2 series introduces a two-stage vacuum generator structure, a departure from SMC's standard single-stage design. This innovative approach, combined with intelligent digital pressure switches, results in remarkable energy-saving benefits.
One of the key advantages of the ZK2 series is the reduction in gas consumption by more than 90%. The system is designed to automatically shut off the gas supply once the desired level of vacuum is achieved, leading to significant cost savings in operations.
Moreover, the ZK2 series boasts a 50% increase in suction flow rate. This improvement is made possible by the incorporation of an efficient supersonic nozzle, known as the Laval nozzle, which optimizes airflow velocity to enhance suction efficiency.
Furthermore, the ZK2 series operates at low noise levels, emitting only 46dB (A). This is achieved through the utilization of a high silencing muffler that not only reduces exhaust noise but also enhances suction flow for improved performance.
| Rated pressure range | 100.0to-100.0 kPa |
| Set pressure range | 105.0 to-105.0kPa |
| Proof pressure | 500 kPa |
| Min. displayunit | 0.1 kPa |
| Applicable fluid | Air, inert gas and non-flammable gas |
| Power supply voltage | 24 VDC ±10%, ripple max. 10%pk-pk(with polarity protection ) |
| Current consumption | 40 mA or less |
| Switch | NPNor PNPopen collector |
| | |
| Output | OUT1: General-purpose,OUT2: Valve control |
| | Maximum load current | 80 mA |
| Max. applied voltage | DC26.4V |
| Residual voltage | Max. 2V (at 80 mA load current) |
| Response time | 2.5 ms or less (response times available for anti-chattering function: : 20, |
| |
| 100, 500, 1000 or 2000 ms) |
| Short circuit protection | Provided |
| Repeatability | ±0.2%F.S.±1 digit |
| Hyster | Hysteresis mode | Adjustable (can be set from 0) 1 |
| |
| esis |
| Display | 3 1/2 digits, 7-segment display, color display (Red) |
| Indicator accuracy | +/-2%F.S., +/-1 digit (at ambient temperature 25+/-3 oC) |
| Indication LED | Light when ON OUT1: Green OUT2: Red |
| Environ | Enclosure | IP40 |
| | Ambient temperature range | 5 to 50 oC |
| ment | Withstandvoltage | 1000 VACfor 1 minutebetween live parts and case insulation resistance |
| | Insulation resistance | 50 Mor more at 500 VDC Between lead block and case |
| Temperature characteristic | ±2%F.S. (25 oC reference) |
| Lead wire | cable 5 cores 3.5, 2 m |
| |
| Sectional area of conductor: 0.15 mm2(AWG26) |
| |
| Outside diameter of insulator: 1.0 mm |
| Standard | CE marking, RoHS |
Applications:
Specially designed for automation scenarios, this vacuum system is particularly suitable for a variety of purposes:
- Precision handling: This system excels at absorbing fragile, soft, or thin non-metallic materials, such as glass, electronic components, and plastic films.
- High-speed intermittent operations: It is ideal for packaging, printing, and robot assembly lines that require quick start-stop vacuum processes to maintain efficiency.
- Energy-saving for sensitive production lines: By decreasing gas consumption by 93%, this system significantly reduces compressed air costs, making it perfect for energy-sensitive production environments.
Support and Services:
SMC Solenoid Valves product technical support and services aim to provide comprehensive assistance to ensure optimal performance and reliability. Our team of experts is dedicated to helping customers with installation, troubleshooting, and maintenance of SMC solenoid valves. Whether you need guidance on selecting the right valve for your application or require assistance with programming and integration, our technical support team is here to help.
FAQ:
Q: What is the brand name of the Solenoid Valves?
A: The brand name of the Solenoid Valves is SMC.
Q: Where is the Solenoid Valves manufactured?
A: The Solenoid Valves are manufactured in China.
Q: What certification does the Solenoid Valves have?
A: The Solenoid Valves are CE certified.
Q: What is the minimum order quantity for the Solenoid Valves?
A: The minimum order quantity for the Solenoid Valves is 1.
Q: What are the accepted payment terms for purchasing the Solenoid Valves?
A: The accepted payment terms for purchasing the Solenoid Valves are T/T, Western Union, and Paypal.
